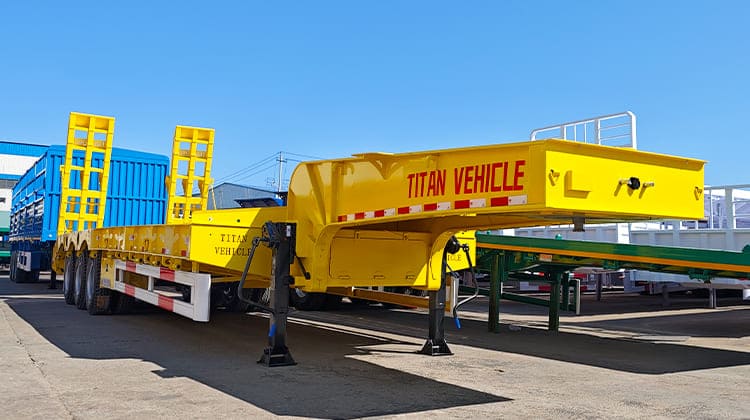

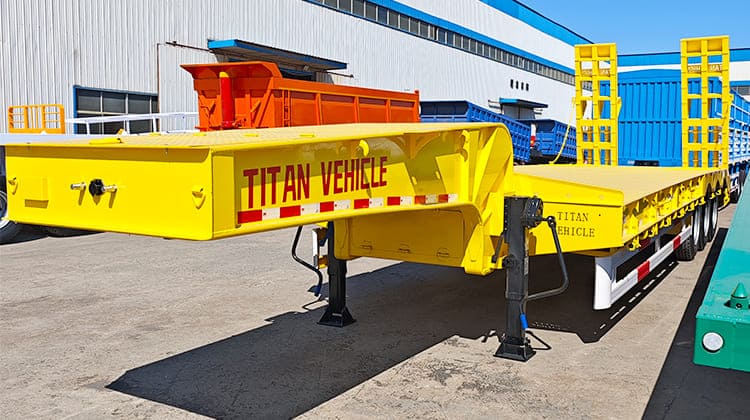

Low Bed Trailer FOB Price: USD 16000
Low bed trailer for sale are constructed entirely of Q550 high strength steel, offering enhanced load bearing capacity and durability, while also preventing deformation. Low bed trailer manufacturers utilize advanced automatic submerged arc welding technology, resulting in smooth, even welds and a stable, secure structure. Low bed trailer price also come with a five year warranty, providing comprehensive support from production to use, ensuring your transport operations are reassuring.

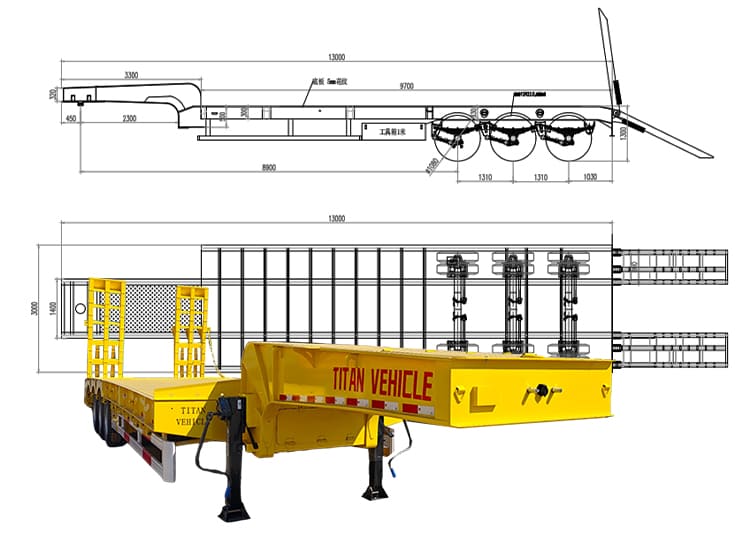

Low Bed Trailer Specifications
Dimensions: 13,000 mm x 3,000 mm x 1,700 mm
Load capacity: 60 tons
Axles: 3 TITAN axles, 16 tons
Tires: 12R22.5, 12 units
Suspension: Heavy duty mechanical suspension

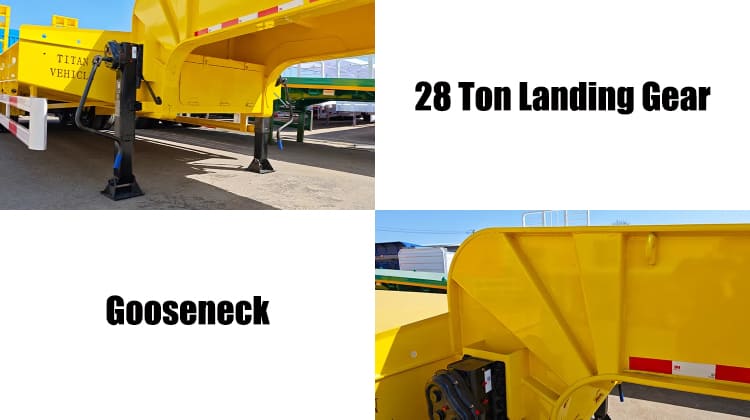

Landing gear: 28 ton, TITAN brand
Braking system: WABCO braking system
Lighting: LED lighting
Ramp: Heavy duty spring ramp
Advantages of the Low Bed Trailer
This low bed trailer for sale exhibits exceptional performance advantages in its core structure. Its frame is constructed of Q550 high strength manganese steel, which offers both exceptional strength and toughness, effectively resisting fatigue damage from long term use.
Low bed trailer manufacturers' longitudinal beam is 500mm high, with upper and lower wings measuring 20mm thick and 200mm wide, and a center plate 12mm thick. This design ensures even load distribution when carrying heavy loads, significantly enhancing low bed trailer price's maximum load bearing capacity and structural stability.
The low bed trailer for sale's side beams are welded from H shaped manganese steel, 300mm high and 140mm wide. The meticulous welding process ensures the beam's overall rigidity, providing strong support for both sides of the vehicle.
The low bed trailer manufacturers' side beam diagonal supports are made from 6mm thick manganese plate, bent and positioned every 50cm. This dense and sturdy support structure further enhances the side beam's deformation resistance, providing greater stability against lateral forces.
Low bed trailer price's bottom plate utilizes 5mm thick patterned plate, which significantly improves wear resistance and load bearing capacity compared to conventional thin floorpans. The patterned design also increases friction between the cargo and the floorpan, effectively preventing it from sliding during transport and ensuring safe transportation.

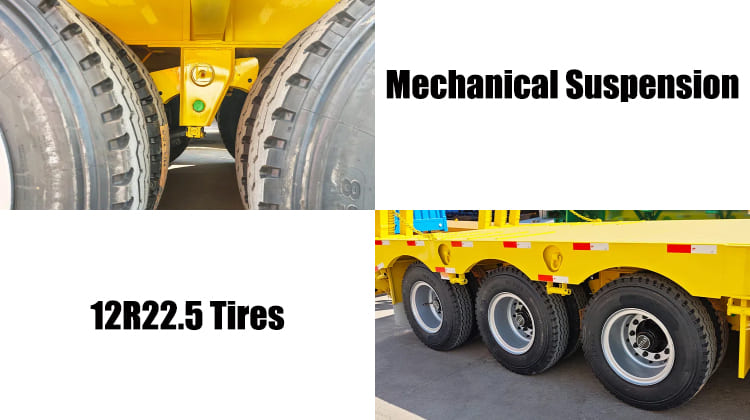

The low bed trailer for sale's axles utilize 16 ton TITAN axles, boasting a robust load bearing capacity. These axles, coupled with twelve 12R22.5 tires, not only provide a large contact patch and excellent grip, but also evenly distribute the vehicle's weight, ensuring stable operation on all road surfaces. The tires are also durable enough to handle demanding transport tasks.
The low bed trailer manufacturers' suspension system is also a highlight. Equipped with ten 16mm thick, 900mm wide leaf springs, coupled with a 10mm thick, 70mm center axle suspension, it offers excellent elasticity and cushioning properties, maximizing the impact of road bumps and protecting both the cargo and the vehicle.

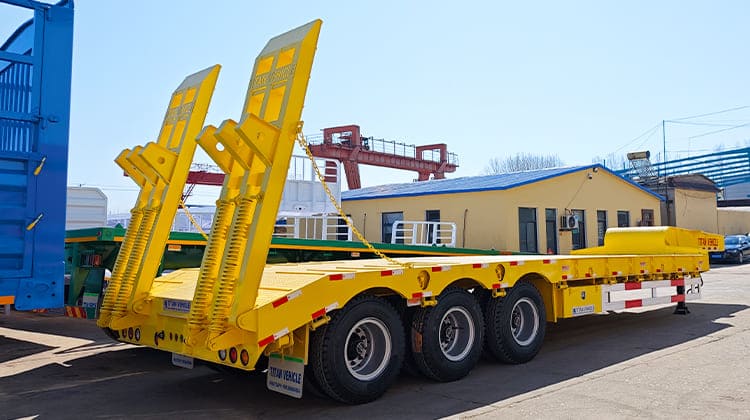

The low bed trailer price's double spring ladder features a user friendly design. The ladder is constructed from high strength steel welded into a box shaped structure with four internal vertical panels, ensuring undeniable strength. Furthermore, a single operator can easily raise and lower the ladder, making it easier for passengers to get on and off, while saving labor costs and providing significant convenience for daily use.
