Stretch Flatbed Price: 20000 USD
The TITAN flatbed stretch trailer has been carefully redesigned to meet the demanding conditions of road networks in the Philippines. These structural refinements ensure compliance with local transport regulations while enhancing durability, safety, and long-term performance.
Specification of Stretch Flatbed
Original Dimension: 12500mm*3000mm*1650mm
Extend Dimension: 24000mm*3000mm*1650mm
Load Capacity: 60 ton
Floor Plate: 3mm thick pattern plate
Side Beam: 160mm high
Landing Gear: 28 ton*2
Axles: 3 axles, 13ton, TITAN brand
Tire: 12 units,
Bumper: thickened
Leaf Spring: 10 layers
Suspension: mechanical suspension
Lamp: LED Lamp
Advantage of Stretch Flatbed
When handling heavy-duty cargo, the stretch flatbed trailer for sale evenly distributes load weight across its reinforced frame, reducing stress concentration and preventing deformation or fatigue over time. This makes the stretch trailer for sale a dependable option for operators seeking reliability and strength in intensive logistics operations.
The frame of the TITAN flatbed stretch trailer is built from Q355-grade low-carbon, high-tensile alloy steel. This material offers outstanding wear resistance and mechanical strength, ensuring the structure remains intact during continuous heavy-duty use.
An optimized frame layout, combined with automated submerged arc welding, guarantees superior bonding at all joints. This process enhances weld consistency and prevents cracking under extreme loads, resulting in a stronger, longer-lasting stretch flatbed trailer for sale.

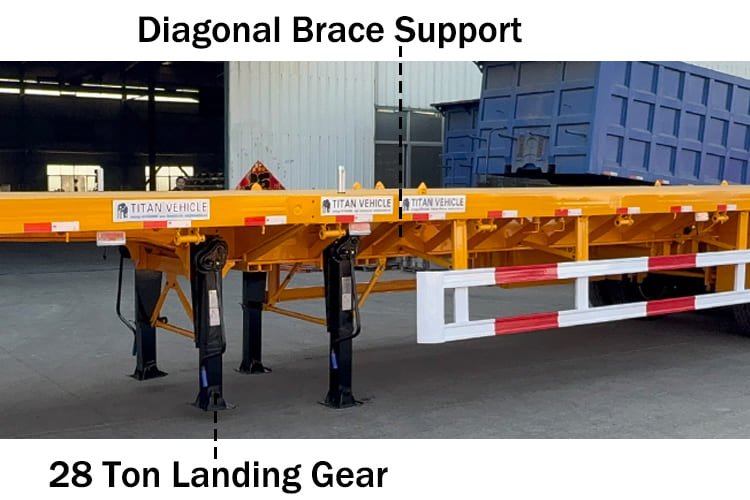

Supporting this structure is a robust chassis design where the main beams are interconnected with cross members and diagonal braces. Each brace is carefully spaced at under 500 mm, forming a stable triangular load-bearing system. This geometry minimizes bending, twisting, and vibration during operation, maintaining the rigidity of the stretch trailer for sale frame even under variable pressure. The result is a trailer that performs reliably across both smooth highways and challenging terrain common in parts of the Philippines.
For surface protection, TITAN applies an advanced powder-spraying and baking paint process to the flatbed stretch trailer body. This coating technique provides superior adhesion compared with traditional paint and is highly resistant to corrosion, UV damage, and chipping.
The finish maintains its glossy appearance and structural protection even under the intense sunlight and humid coastal climate of the Philippines, helping extend the trailer's aesthetic and operational lifespan.

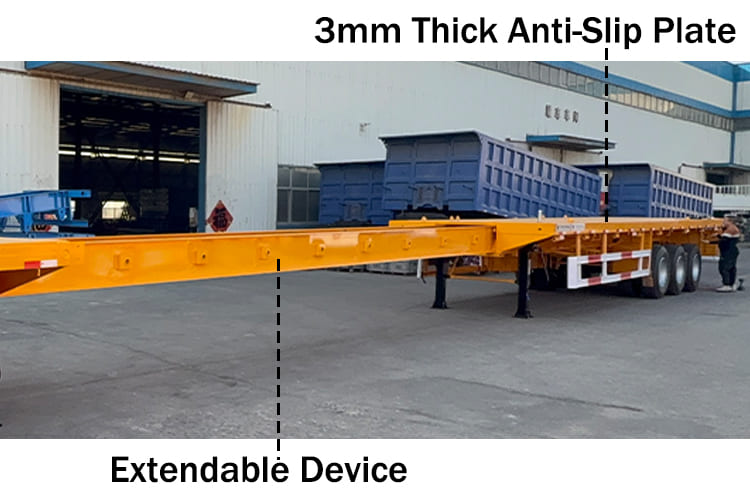

The flooring of the stretch flatbed trailer for sale is constructed from patterned high-strength steel plates. This design enhances friction, preventing cargo from sliding during loading and transportation.
The patterned plate also offers strong corrosion resistance, making the stretch trailer for sale ideal for tropical environments. Whether transporting containers, construction materials, or heavy machinery, the reinforced floor provides stable support and long-term reliability for daily operations.
To ensure smooth driving performance, the flatbed stretch trailer uses a mechanical suspension system made from high-tensile steel. The suspension incorporates a multi-level damping mechanism and a 70 mm central balance pin that absorbs impact from road irregularities. Reinforced side brackets provide additional stability, safeguarding both the cargo and the stretch flatbed trailer for sale from potential damage when navigating rough or uneven terrain.

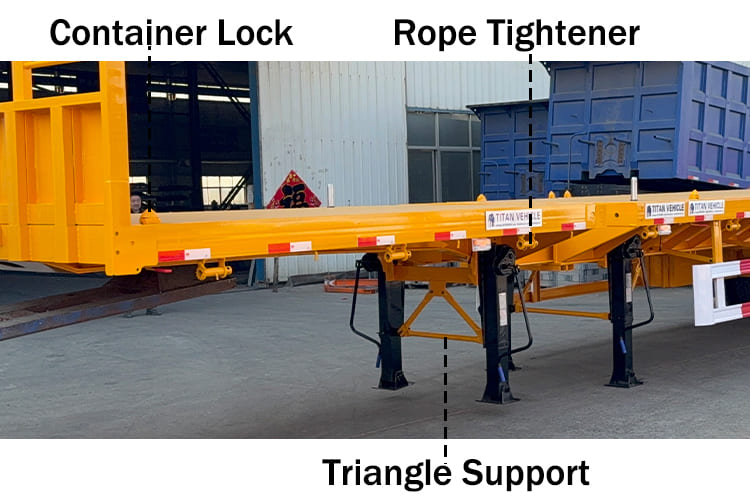

Cargo safety is a top priority for TITAN. The stretch trailer for sale comes with a series of side-mounted rope tensioners that enable operators to secure loads firmly in place. This system prevents movement during sudden stops or tight turns, improving transport stability.
The mechanism is simple to operate, saving time during loading and unloading while ensuring consistent cargo protection. Adjustable container locks further enhance versatility, enabling the flatbed stretch trailer to handle different container sizes and load configurations with ease.
At the front of the trailer, a 12 mm thick one-piece steel traction plate connects the stretch flatbed trailer for sale to the towing unit. This component evenly distributes pulling forces and integrates shock-absorbing features to reduce the risk of frame stress or mechanical disconnection. The result is a smoother, safer towing experience for operators.
Shipping of Flatbed Stretch Trailer
For clients in the Philippines, TITAN provides both containerized and roll-on/roll-off (Ro-Ro) shipping options. Before export, each stretch trailer for sale undergoes a specialized protective process, including a layer of anti-corrosion wax applied to all exposed surfaces and a custom waterproof cover installation. This dual-layer protection shields the flatbed stretch trailer from salt air and moisture during maritime transit, ensuring it arrives in pristine, ready-to-use condition at its destination.
