Flatbed Semi Trailer FOB Price: USD 10000

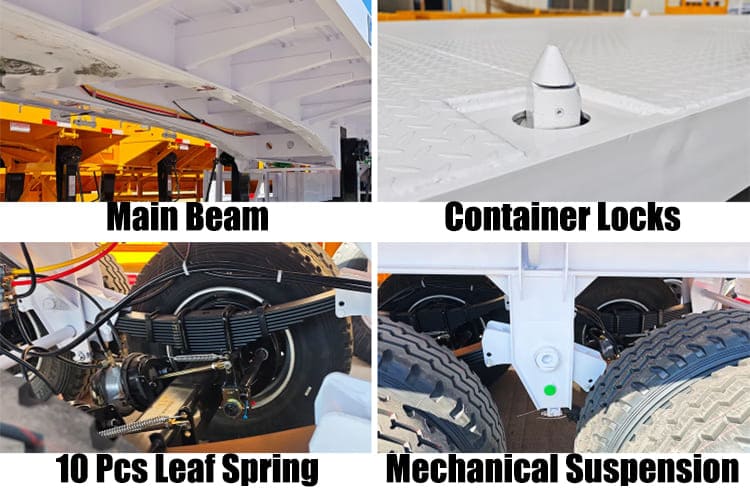

The main beam of the tri axle flatbed semi trailer for sale is constructed from low carbon, high strength Q355 steel and comes with a five year warranty.

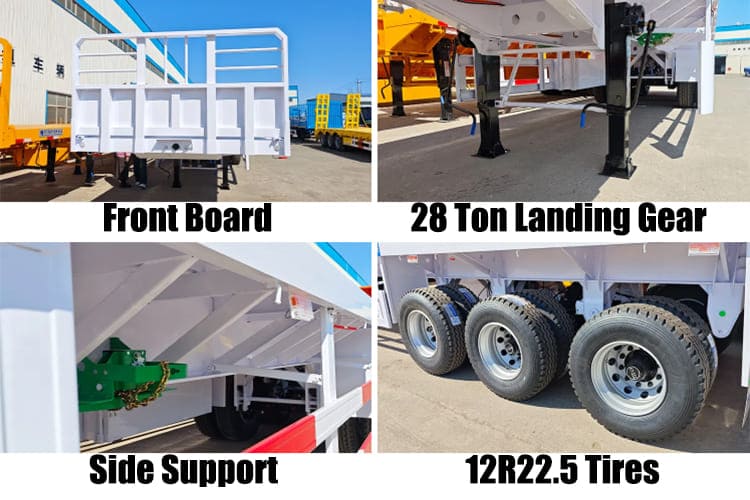

The side beams are 300mm wide, and the side supports are less than 500mm.
The flatbed semi trailer for sale is equipped with a thickened front fender and adjustable locks. It utilizes automatic submerged arc welding technology to effectively enhance its vibration resistance during operation.
Flatbed Semi Trailer Specifications

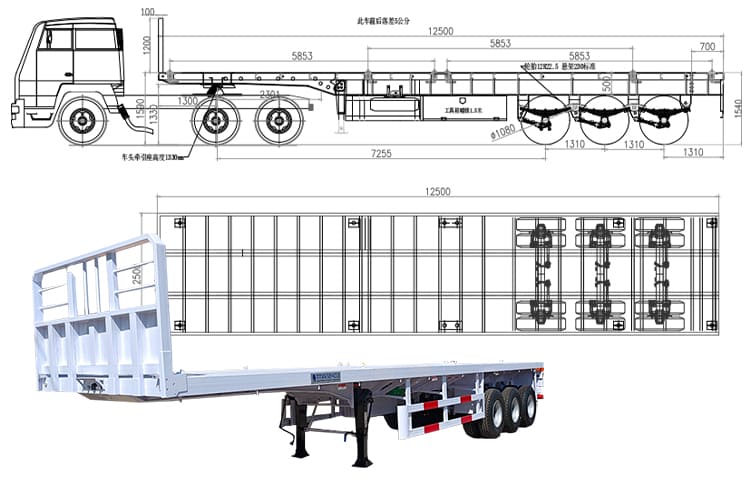

Dimension(mm): 12500x2500x1460mm
Loading capacity(ton): ≤60T
Axles: 3 axles, TITAN Brand
Tire: 12 units, 12R22.5
Suspension: Mechanical suspension
Landing gear: JOST brand
Brake system: WABCO
Advantages of Flatbed Semi Trailer
The side beam of this tri axle flatbed semi trailer for sale are constructed from U shaped steel. Compared to the lightweight steel commonly used in other factories, their thickness and strength are significantly increased, allowing them to more reliably withstand the lateral pressure of containers.
We insist on not cutting the main beam, preserving the original structure and mechanical properties of the steel. This fundamentally ensures the beam's load bearing capacity, far surpassing those flatbed semi trailer that cut the beam for convenience.
In terms of chassis protection, the tri axle flatbed semi trailer for sale is equipped with eight high strength crossbeams, closely arranged to form a solid support. Most competitors use only five or fewer, providing incomparable chassis protection.
Tri axle flatbed semi trailer's axles are equipped with a 16 ton braking system, equipped with high performance brake pads, which provide faster braking response and stronger braking force, ensuring driving safety far beyond ordinary configurations in complex road conditions.
The flatbed semi trailer for sale's bottom plate is constructed with 5mm thick, diamond patterned steel. This is not only more wear and impact resistant than the 2.5mm or 2mm floorpans typically found in other factories, but the diamond pattern also significantly enhances friction between the container and the floorpan, preventing cargo from sliding.
Tri axle flatbed semi trailer for sale's suspension utilizes an 70mm center balance axle and reinforced spring steel plates, providing excellent flexibility and toughness. This makes it easy to navigate Africa's hilly and potholed roads, significantly reducing the impact of bumps on the vehicle and cargo.
The flatbed semi trailer for sale's tires are all steel radial run flat tires with an 18mm tread depth. They offer excellent wear resistance and are well suited to Africa's hot, gravelly roads, extending their service life by over 30% compared to conventional tires.
Key connectors on the tri axle flatbed semi trailer utilize high strength bolts, reinforced by heat treatment for superior shear and corrosion resistance. Compared to conventional bolts used in other factories, these bolts reduce the likelihood of loosening by 80%, significantly reducing maintenance frequency.
