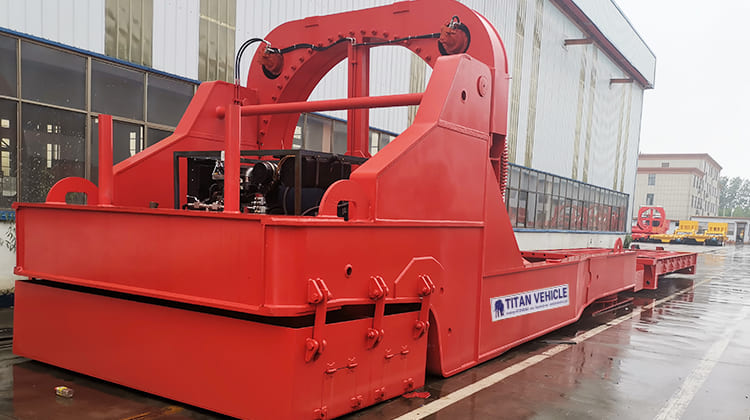

Wind Blade Adapters Price: 120000USD
The wind blade adapter trailer is specifically designed for wind turbine blades, featuring a retractable structure and a high strength frame to ensure safe and stable transport. Wind blade adaptor trailer is primarily used for transporting large wind turbine blades over long distances or in special road conditions, adapting to the handling and loading/unloading needs of blades of different sizes.
Specification of Wind Blade Adapters
Dimension: 19500mm*3400mm*4650mm
Applicable blade: 56.5m-76m

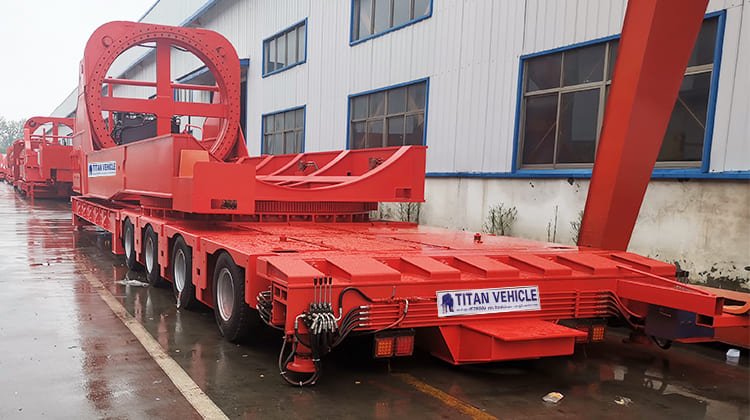

Axle: 4 lines 8 axles
Tires: 32 units
Max rotation angle: 360°
Hydraulic station: 40KW Four-cylinder Diesel Engine
Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher
Transportable wind blade specification: 121-155 model
Diameter of lifting cylinder: 320mm
Advantages of Wind Blade Adapters
The wind blade transport adaptor boasts a stable and reliable overall structure with exceptional adaptability. Wind blade adapters can meet the demands of long distance transport on ordinary roads and overcome the challenges of secondary transfers in complex terrains such as steep mountainous areas.
The wind blade adapter trailer employs a low bed design to lower the overall center of gravity. Combined with a frame constructed from high strength steel plates, this design effectively controls weight while ensuring load bearing safety, improving both economy and convenience when unloaded. The design allows for flexible adjustments to accommodate wind turbine blades of varying lengths.
Some wind blade adaptor trailer feature a significantly extendable working platform to accommodate various blade specifications, and the single beam design further enhances transport stability.

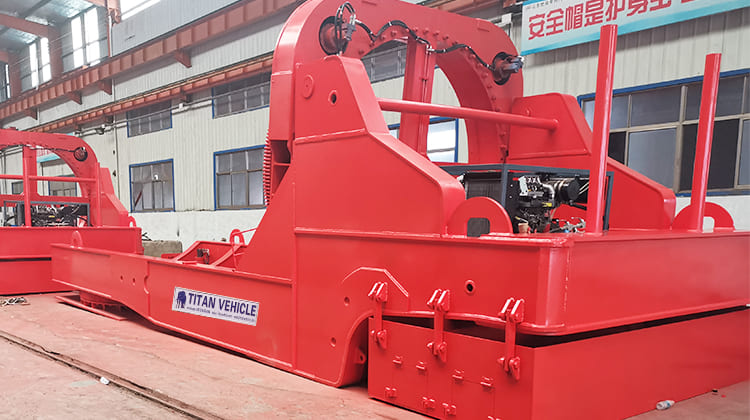

The wind blade transport adaptor's power system is robust, featuring a diesel engine and plunger pump combination that provides ample power for blade rotation and lifting. Multiple hydraulic motors drive the overall rotation and blade pitch control, ensuring both power and balance synchronization.

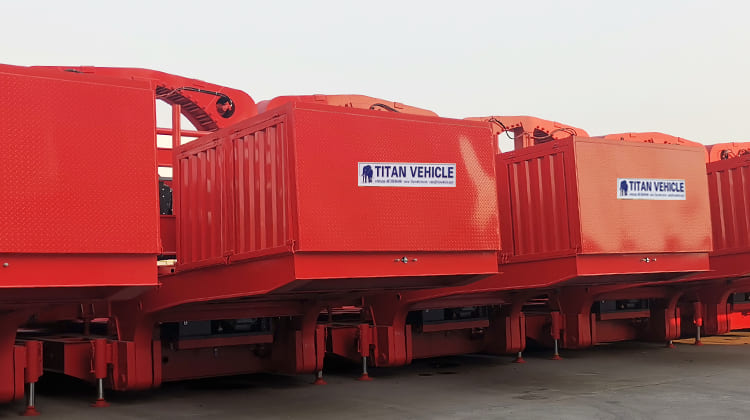

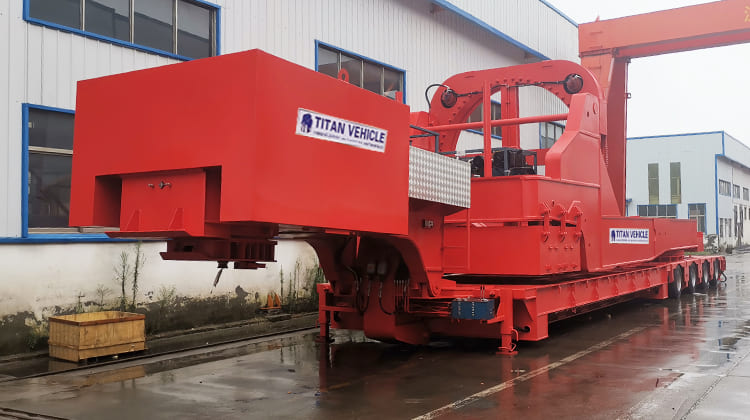

The wind blade adapters' load bearing components are ingeniously designed. The hydraulic cylinders are mounted below and on the opposite side of the blades, increasing the lifting arm and reducing system pressure. The detachable front counterweight box allows for adjustable loads, reducing overall weight while maintaining balance.

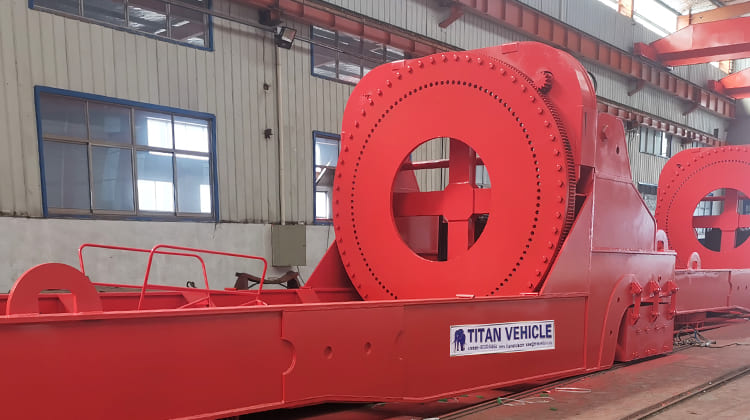

The wind blade adapter trailer is equipped with comprehensive control and safety features. Its slewing frame allows for blade lifting and 360 degree rotation, enabling it to steer away from strong winds and adjust its posture flexibly when encountering obstacles.
A turntable at the axle enhances turning performance, multiple suspension systems with counterweights ensure even force distribution, and an emergency braking system further strengthens safety of wind blade adaptor trailer.
